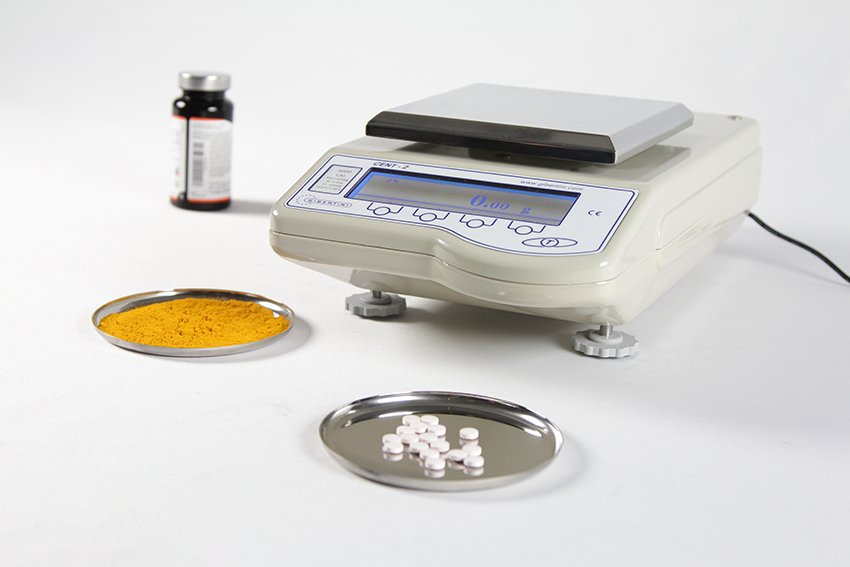

CENT-2 – Precision Scale

Gibertini precision scale with readability from 0.001 g to 0.1 g and maximum capacity from 210 g to 10200 g with magnetic compensation cell

• Large graphic LCD display for an easier and more immediate reading
• Acid-resistant membrane keyboard with TARE, ON / OFF, PRINT and MODE keys
• Stable weight Indication
• Anti-Shock system
• Counting function
• Percentage
• Standard Deviation
• Solid/Liquid density

Gibertini precision scales or technical scales are designed to deliver extremely accurate results. Entirely in metal, they are safe and resistant to chemical agents, the indestructible cells ensure a long life of the instrument even in harsh environments (dusts, acids …).

The magnetic compensation scales are generally used in the weighing of medium-small samples, raw materials, particulates or semi-finished products, in research laboratories and for quality control. Available in a wide range of capacities and sizes, they are suitable for many types of products and sectors.

FEATURES

Ergonomic Design

Ergonomic design and magnetic compensation cell make CENT-2 serie efficient and accurate.

• The cell guarantees accurate performance even on unstable work surfaces.
• They are the perfect choice for everyday weighing operations in any laboratory or production environment where economics is relevant.

PRECISION SCALES

Easy & Safe

The high-performance scales of CENT-2 series are easy to use thanks to the large graphic LCD display for easier and more immediate reading of the data.

• A Circular display case protect the weighing pan to avoid environmental interference during use.
• The RS232 communication interface allows fast and safe data transfer.

MAGNETIC COMPENSATION CELL

Solid & Accurate

All CENT-2 series scales are equipped with a magnetic compensation cell that guarantee their quality and high repeatability.

• The Anti-Shock system makes the weighing cell practically indestructible and not subject to transport problems.
• Internal Calibration saves time in the calibration processes, necessary to guarantee the correct functioning of the instrument, ensuring accurate results over time.

APPLICATIONS

Strong & Versatile

Used in all sectors where precision and robustness is needed, the CENT-2 series scales are appreciated in dosing, Statistics / QC, counting applications.

• Pharmaceutical
• Cosmetics
• Paints

PRINT GLP/GMP/GCP/ISO

To meet documentation requirements, it is possible to obtain a printout that includes: a header (e.g. company name), the instrument model, the serial number, the date and time . Furthermore, a dedicated space is reserved for the operator’s signature in addition to the weighing results. Through the use of the password lock function available on the scale, falsification of timestamps can be prevented.

CERTIFICATION

Quality & Calibration

All laboratory scales Gibertini can be supplied with :

• IQ / OQ Installation
• ISO calibration
• LAT Calibration Certificate

to ensure compliance with the required standards and the reliability of the results ( GMP, GLP, Ph.Eur ).

Functions and Features

• Large graphic display with easy-to-use guided functions
• Reduced decimal digits and numerous other selectable units of measurement
• Bar graph with display of the percentage of full scale used
• Piece counter of homogeneous pieces
• Percentage
• Standard Deviation
• Solid/liquid Density
• Selection of the Italian / English display language
• Self-calibration every 3 hours or when the temperature changes and / or calibration with external mass
• Stable weight indication
• Slow/Fast Response time selection
• Weighing below the scale

Accessories

The following accessories are available for all Gibertini Cent-2 series scales :

• Kit for determining the density of solids and liquids
• Printer: DP24T-SER

• Certified sample weights
• Software SCALE COMM
• Executions with special flow rates

Precision Balances and Applications

Why is a high resolution in weighing so important?

Cent-2 scale series are suitable for all high-value applications, whose products must have high precision. When counting the pieces, the resolution of the scale guarantees theaccurate calculation of the average unit weight. The correct result is determined by the calculated average weight.

• From goods receiving to ensure the supply
• Warehouse management, for inventory security
• Quality Control, to ensure compliance
• Formulation and mixing of precious components
• Shipping

Technical scales in the textile industry

Technical or precision scales are used in the textile industry in different stages of the process. For example in the measurement of qualitative characteristics of the product :

• Determination of the count of yarns, ribbons and wicks thanks to the resolution of 0.001g
• Determine the weight of the product. weight per m2 following cutting made with a special circular sample cutter;
• Determination of dry mass, “weight or commercial mass”:

Technical scales for the characterization and management of inks

Technical or precision scales (0.01 g) are normally used in the formulation phase:

• Inks production starting from technological pastes and paints (also known as system additives);
• Addition of solvents for the viscosity of the finished product;
• pH dosage regulator in water-based inks;
• Correction of tint;
• Addition of specific additives such as adhesion promoters, matting agents, hardener dosage in two-component systems;
